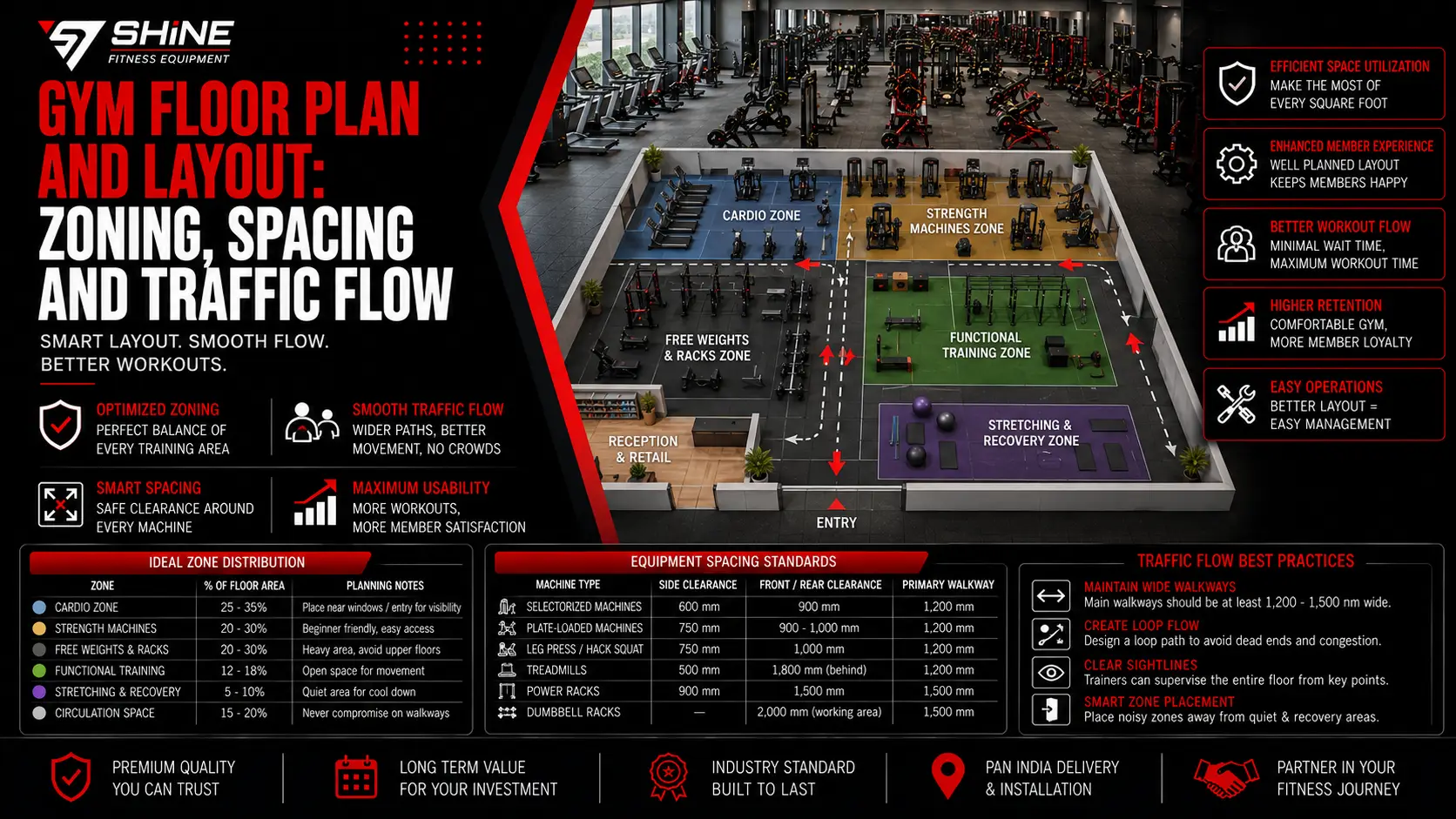

A gym floor plan layout determines more of a facility’s commercial performance than the equipment brands installed on it. Members judge a gym within thirty seconds of walking in, and that judgement is formed by sightlines, circulation width and whether the room feels navigable or congested. Poor zoning creates queues at peak hour, forces members to cross training areas mid-set, and quietly suppresses retention in ways that never appear on an equipment invoice. This article sets out how to plan a commercial gym floor plan properly: how to allocate area between zones, how to space equipment, and how to route traffic so the floor works at full occupancy rather than at nine in the morning.

The gym floor plan layout principles below apply to facilities from 1,500 to 20,000 square feet. Dimensions are given in millimetres and metres because that is how installers and architects work, with square-foot equivalents where they aid planning.

What Is a Gym Floor Plan Layout?

A gym floor plan layout is a detailed arrangement of training zones, equipment, walkways and supporting areas within a fitness facility. It determines how efficiently members can move through the gym, how comfortably they can use equipment and how effectively the available floor space supports different types of training.

A well-planned gym floor plan layout considers more than simply fitting machines into an available room. It accounts for cardio, selectorised strength, free weights, functional training, stretching and recovery areas, along with dedicated circulation space. Equipment spacing, sightlines, accessibility, structural requirements and emergency routes must also be considered before installation.

For commercial gyms, the objective is to create a floor that remains safe and easy to navigate during peak occupancy. Planning zones before positioning individual machines helps prevent congestion, unnecessary crossing traffic and poor equipment access while making better use of the available training area.

Equipment Spacing Standards

Clearance around machines is where a gym floor plan layout either succeeds or fails in practice. The figures below reflect established commercial practice and should be treated as minimums, not targets.

Machine Type	Side Clearance	Front / Rear Clearance	Primary Walkway
Selectorised strength	600 mm	900 mm	1,200 mm
Plate-loaded strength	750 mm	900 – 1,000 mm	1,200 mm
Leg press / hack squat	750 mm	1,000 mm	1,200 mm
Treadmills	500 mm	1,800 mm behind belt	1,200 mm
Cycles and ellipticals	500 mm	900 mm	1,200 mm
Power racks	900 mm	1,500 mm	1,500 mm
Dumbbell racks	—	2,000 mm working area	1,500 mm
Functional trainer	1,250 mm	2,500 mm clear radius	1,500 mm

Two clearances are safety-critical rather than comfort-related. Treadmills require at least 1,800 mm of clear run-off behind the belt, because a fall at speed projects the user backwards. Power racks require 1,500 mm of front clearance for bar loading and bail-out. Neither figure should be compromised to add a station.

Strength Zone Planning

Strength zone planning deserves separate treatment because it carries the highest structural, acoustic and supervision demands on the floor. Three decisions govern how well this part of the gym floor plan layout performs.

Structural Position

Free weights and heavy plate-loaded stations impose concentrated point loads and impact loading from dropped weights. Place them on a ground-floor slab wherever possible. In multi-storey facilities, position them over columns or load-bearing walls rather than mid-span, and confirm the permitted loading with a structural engineer before finalising the commercial gym floor plan.

Movement-Pattern Grouping

Group stations by movement pattern rather than by manufacturer or aesthetic symmetry when drawing the gym floor plan layout. Pushing stations together, pulling stations together, leg stations together. Members superset within a pattern group far more often than across the floor, and correct grouping removes a substantial share of peak-hour crossing traffic.

Supervision and Sightlines

Floor staff should be able to see the entire strength area from two positions or fewer. Mirrors are functional infrastructure here, not decoration: they extend sightlines, allow members to self-check form, and make a compact strength zone feel considerably larger.

Traffic Flow and Member Journey

Every effective gym floor plan layout encodes a route. The member enters, passes reception, reaches a changing area, moves to warm-up, progresses through their session and exits without doubling back through zones they have finished with.

• Single primary spine. Run one main walkway of at least 1,500 mm through the length of the floor, with secondary walkways of 1,200 mm branching from it.
• No dead ends. Every zone should have two access points; single-entry zones create congestion at peak hour.
• Warm-up near the entrance. Placing cardio and stretching close to the entry establishes a natural session sequence.
• Separate loading traffic. Weight trees and plate storage should sit adjacent to the stations they serve, never across a walkway.
• Protect emergency egress. Exit routes must remain unobstructed at the widest point of the floor, regardless of equipment demand.

A practical test of any gym layout design: walk the intended route on a marked-out floor before installation. If any point requires stepping between two machines or crossing an active lifting area, the gym floor plan layout needs revision before equipment lands.

Common Layout Mistakes

The same gym floor plan layout errors recur across facilities, and each is far cheaper to correct on a drawing than after installation.

• Filling circulation with equipment because the machine order arrived before the layout was finalised.
• Placing free weights on an upper floor without confirming slab capacity or acoustic isolation.
• Positioning cardio facing a blank wall, which measurably reduces utilisation of the most expensive units on the floor.
• Under-spacing the functional zone, leaving insufficient radius for cable work, sled pushes and mobility drills.
• Ignoring plate storage, which results in loose plates on walkways and a visible trip hazard.
• Neglecting accessibility, where narrow gaps between stations exclude members with mobility limitations.

On the last point, maintaining minimum 900 mm accessible routes in line with recognised accessible design standards is both a compliance matter and a commercial one it widens the addressable membership rather than narrowing it.

Planning a new facility or a refit? Shine Fitness provides free gym floor plan layout drawings with every equipment enquiry zone allocation, spacing and traffic routing prepared against your actual dimensions. Share your floor measurements and target membership at shinefitness.in and our design team will return a scaled layout with a matched equipment schedule.

Area Per Member and Capacity Planning

Capacity should be derived from the area available in the gym floor plan layout, not assumed. Established industry benchmarks summarised by the Health & Fitness Association place comfortable training density at roughly 10 to 14 square metres of training floor per peak-hour user for a mainstream club format.

Facility Size	Training Floor	Comfortable Peak Users	Suggested Format
1,500 sq ft	1,100 sq ft	10 – 14	Boutique / studio
3,000 sq ft	2,300 sq ft	20 – 28	Neighbourhood gym
5,000 sq ft	3,900 sq ft	35 – 48	Full-service club
10,000 sq ft	7,800 sq ft	70 – 95	Multi-zone club
20,000 sq ft	15,500 sq ft	140 – 190	Flagship facility

Exceeding these densities does not create additional revenue in a linear way. Beyond roughly 8 square metres per user, members begin to perceive the gym as crowded, class attendance shifts and cancellation rates rise. Density is a retention variable, and a gym floor plan layout should be designed against it deliberately.

Ceiling Height, Flooring and Services

A gym floor plan layout is three-dimensional, and gym layout design must account for the vertical envelope as well as the plan. Minimum clear ceiling height is 3,000 mm across the training floor and 3,600 mm over racks and any overhead pressing area, measured below ductwork and light fittings rather than to the slab soffit.

Flooring should be zoned in parallel with the equipment plan. Specify 6 to 8 mm rubber under cardio and selectorised machines, 15 to 20 mm rubber under plate-loaded and functional areas, and 30 to 50 mm impact-rated tiles or a lifting platform under free weights. Ventilation should deliver a minimum of six air changes per hour across the floor, increased over cardio, and power and data outlets must be positioned before flooring is laid  retrofitting a socket under a bolted-down treadmill row is expensive and avoidable.

Conclusion

A gym floor plan layout is a commercial instrument. Zone proportions determine which member segments the facility serves, equipment spacing determines whether the floor is safe and usable at peak occupancy, and traffic routing determines whether members experience the space as effortless or obstructive. Plan zones before equipment, treat circulation as fixed rather than flexible, and verify structural and service requirements before anything is bolted down.

Shine Fitness works with gym owners, architects and facility managers across India on complete gym setup  from floor planning and equipment specification through manufacturing, delivery, installation and long-term service. Our design team prepares scaled layouts with correct spacing and zoning as part of the equipment consultation, and our commercial-grade machines are fabricated and load-tested in-house. If you are developing a commercial gym floor plan for a new facility or reworking an existing one, Shine Fitness can support the project from drawing to opening day. Visit shinefitness.in to begin.

Frequently Asked Questions

How much space does each gym machine need?

Allow 600 to 750 mm of side clearance and 900 to 1,000 mm front or rear clearance for strength stations, plus a 1,200 mm walkway. Treadmills require 1,800 mm of clear run-off behind the belt and power racks 1,500 mm at the front.

What is the ideal zone split for a commercial gym floor plan?

A mainstream club typically allocates 25 to 35 per cent to cardio, 20 to 30 per cent each to selectorised and free-weight strength, 12 to 18 per cent to functional training, 5 to 10 per cent to stretching, and 15 to 20 per cent to circulation.

How many members can a 3,000 square foot gym accommodate?

Roughly 20 to 28 comfortable peak-hour users, which usually supports a total membership of 300 to 450 depending on visit frequency and operating hours.

What ceiling height does a gym require?

A minimum clear height of 3,000 mm across the training floor and 3,600 mm over racks and overhead pressing areas, measured below ducting and lighting rather than to the structural slab.

Should free weights be on the ground floor?

Wherever possible, yes. Free weights impose impact and point loading and generate noise. On upper floors, position them over columns or load-bearing walls, use impact-rated flooring and obtain structural clearance before installation.

What is strength zone planning?

Strength zone planning is the process of positioning resistance equipment according to structural capacity, movement-pattern grouping and staff sightlines, so that members can superset efficiently and the area can be supervised from a minimal number of positions.
